Instrument mounting and alignment
Hold a compatible indicator or probe at the required position and orientation. Choose interfaces that locate the instrument without disturbing its movement.
TESA · Accessories & Data
Measuring Stands & Supports
Select TESA supports and clamping accessories for indicators, probes and comparative inspection. Match the mounting interface, contact position and support surface to the measuring method.
Support the measurement workflow.
Stable bench comparison
Support the measuring instrument and component on a suitable table or stand for repeatable comparative readings.
Contact access in a fixture
Position the instrument around restricted features using suitable articulated, flexible or fixed support arrangements.
Explore the product family.
Models and measurement options
| Family / option | Configuration | Selection notes |
|---|---|---|

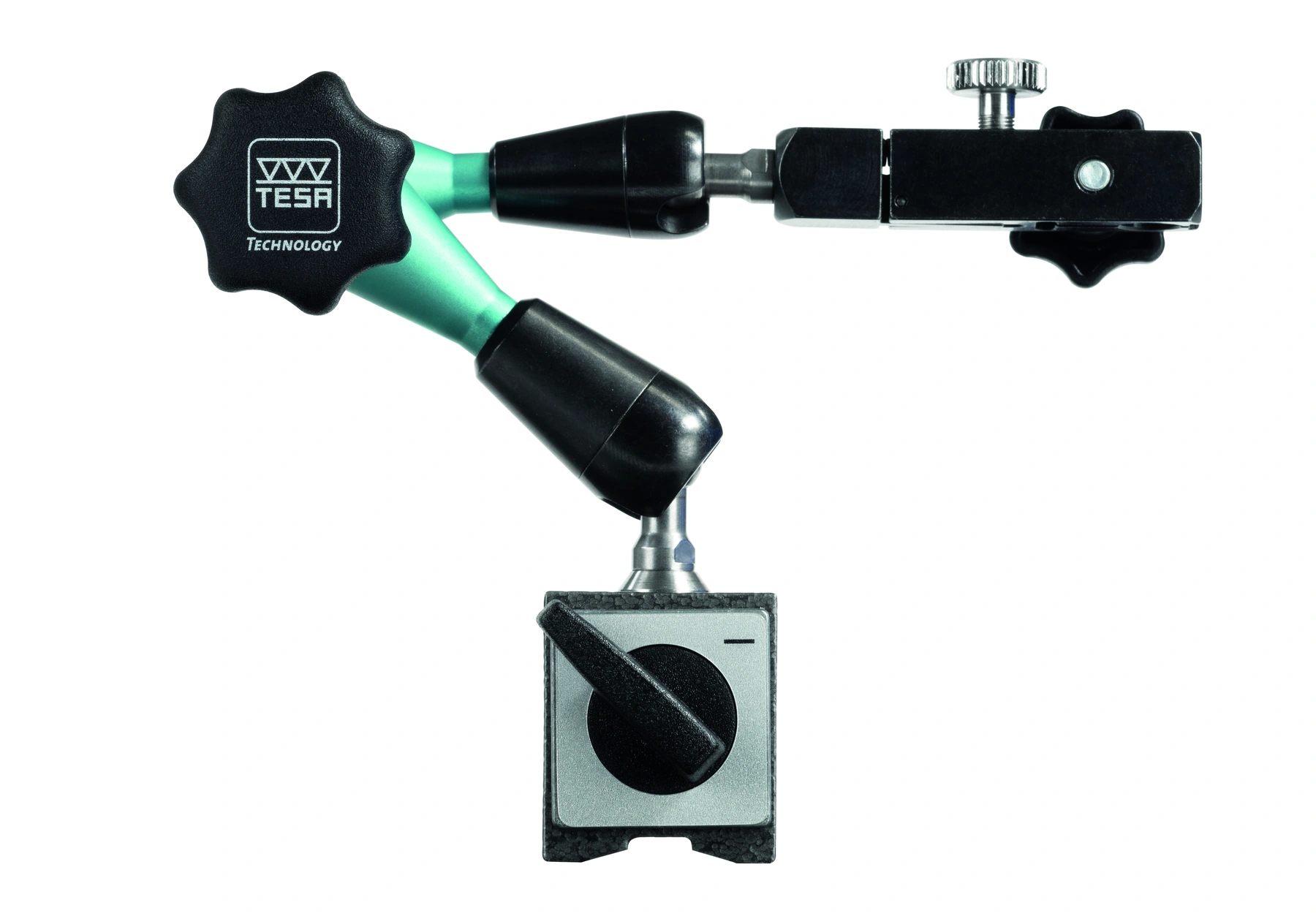

| Magnetic supports | Fixed, articulated and flexible-arm arrangements | Choose the available magnetic mounting surface and required reach. |
| Supports with measuring tables | Granite or ground-surface table arrangements | Select table size, working height and instrument attachment. |
| Suction support | Articulated support with suction base | Check the intended surface and the required mounting stability. |
| Micrometer supports | Bench mounting for suitable outside micrometers | Match frame geometry and positioning requirements. |
| Holders, rods and reducing sleeves | Instrument-specific fixing accessories | Check stem diameters, dovetail interfaces and available clearance. |
This comparison describes product families and configurations. Confirm the exact range, permissible error, accessories and documentation with the selected part number.
What to consider before choosing
Mounting interface
Identify the exact indicator, test indicator or probe and its stem, back or dovetail attachment.
Reach and stiffness
Specify the contact location, working height and available clearance. Keep the support arrangement suitable for the measurement sensitivity.
Base and workpiece
Describe the mounting surface and component support. Select magnetic, suction or table construction accordingly.
Frequently asked questions
Will a magnetic base work on every surface?
A magnetic support requires a suitable ferromagnetic mounting surface. Specify the actual surface and consider a table or other support arrangement when needed.
Does a stand include the indicator shown in the photograph?
Product photos may show an assembled application. Confirm whether the quotation includes the stand, instrument, holders and contacts or a defined set.
Can I use one holder for plunger and lever indicators?
Check each instrument’s attachment. Stem, dovetail and back-mount interfaces may require different rods, clamps or adapters.
How do I specify the required support?
Provide the instrument model, mounting interface, working height, reach, contact position, base surface and any workpiece-support requirement.
Start with your component
Discuss TESA measuring stands & supports
Instrument model, mounting interface, base surface, working height, reach, contact position and support requirements.
India availability, supplied accessories and lead time are confirmed with the quotation.
