Internal-geometry replication
Create a replica of a suitable internal feature for subsequent inspection. Review feature complexity, extraction access and the selected liquid compound.
TESA · Accessories & Data
Dimensional Replica Materials
Compare TESA moulding compounds and accessories for dimensional replication. Select the compound for the feature, extraction method and subsequent measurement of the cured replica.
Support the measurement workflow.
External-shape replication
Replicate selected external threads, grooves or other shapes with a suitable compound and defined measuring method.
Surface-texture replication
For a suitable compound and validated procedure, review replication for the specified surface-texture evaluation. Confirm that the material and method support the required parameter.
Explore the product family.
Models and measurement options
| Family / option | Configuration | Selection notes |
|---|---|---|

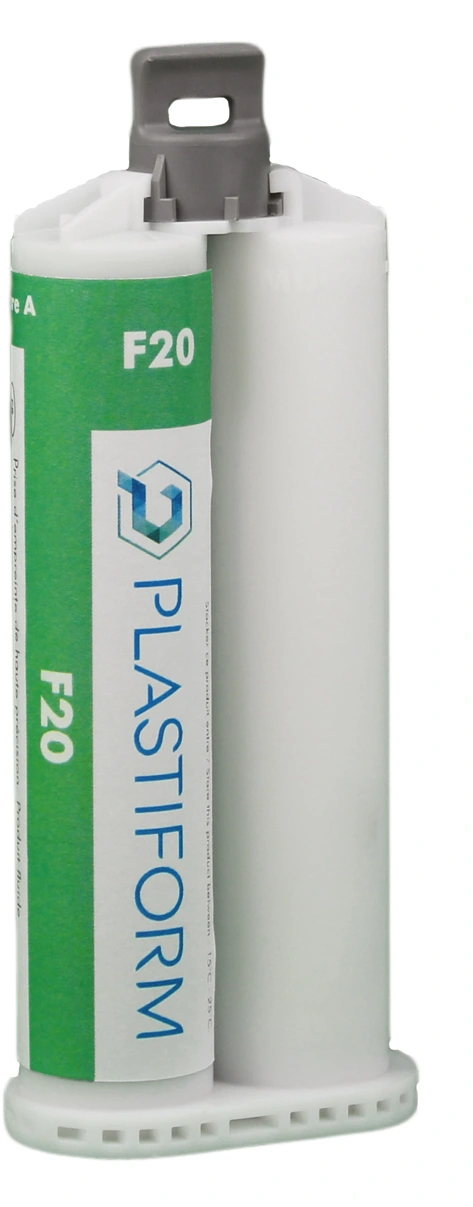

| F20 liquid compound | Internal shapes including complex geometry | Assess filling and replica extraction for the actual component. |
| F50 liquid compound | Simple internal geometry | Select against the shape and subsequent measuring method. |
| M70 malleable compound | Simple external shapes or custom support tasks | Review application, extraction and the intended dimensional evaluation. |
| P80Ra pasty compound | Simple external shapes or specified Ra replication tasks | Confirm the material and evaluation method for the surface requirement. |

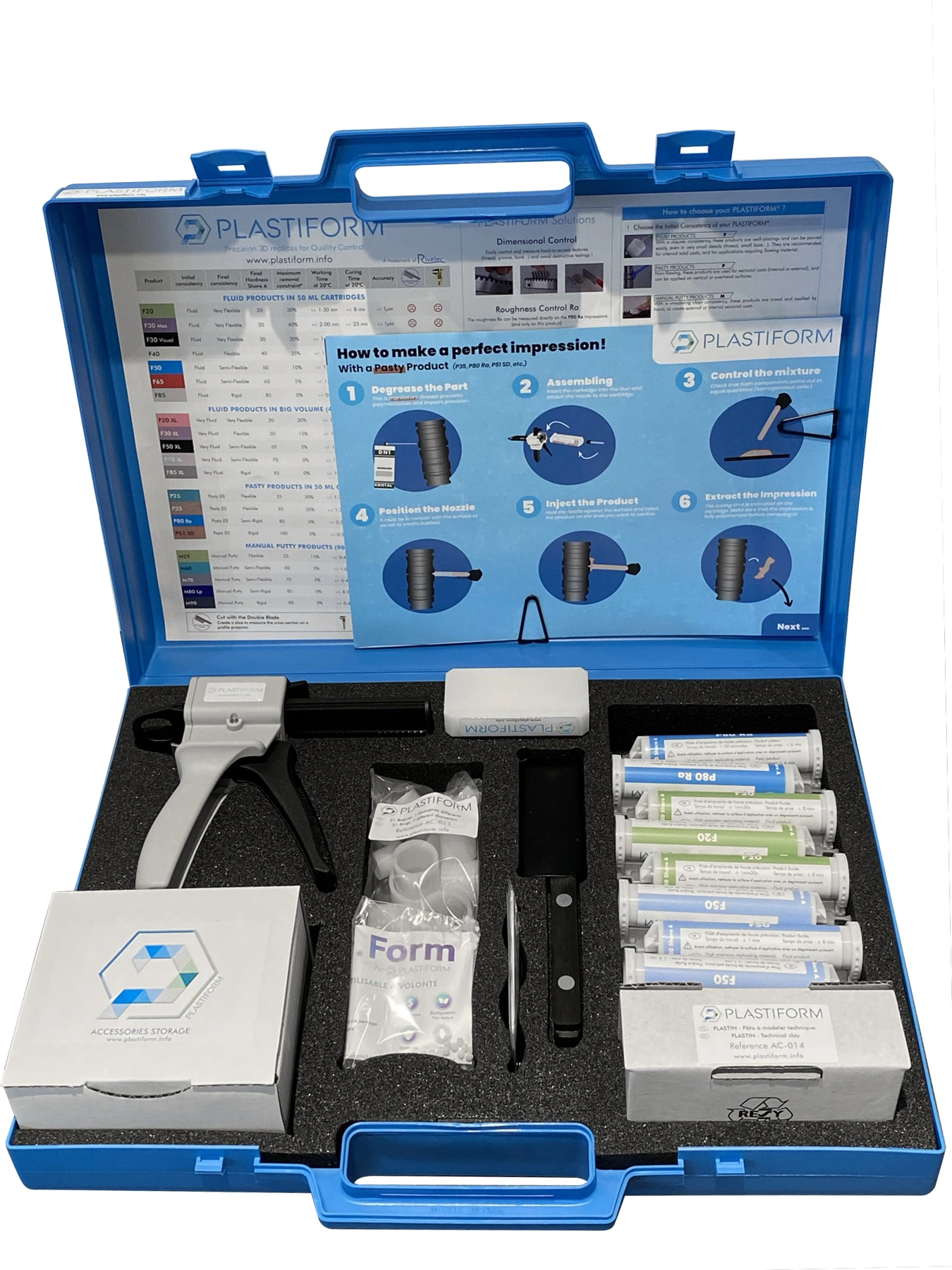

| Application and cutting accessories | Nozzles, manual gun, cutter and starter case | Specify cartridge compatibility and the complete preparation workflow. |
This comparison describes product families and configurations. Confirm the exact range, permissible error, accessories and documentation with the selected part number.
What to consider before choosing
Feature and extraction
Supply the geometry and accessible openings. Review whether the cured replica can be removed and located for measurement.
Compound and process
Choose the material for the internal, external or texture task and follow its preparation and curing instructions.
Measurement validation
Define how the replica will be measured and verify the complete replication process against the required tolerance or parameter.
Frequently asked questions
Can any compound replicate any roughness parameter?
Choose a material specified for the intended surface-texture task and validate the measurement method. Do not extend an Ra-related application claim to every roughness or areal parameter.
Are these products for detecting internal material defects?
This category concerns dimensional replication of accessible geometry and surfaces. Choose a material-defect inspection method separately where the requirement concerns cracks, porosity or other internal defects.
What matters when replicating a bore or undercut?
Review filling access, compound behaviour, curing and extraction of the replica. Supply the section drawing before selecting a material.
What should a complete kit include?
Confirm compound type and quantity, compatible applicator and nozzles, any cutting equipment and the method for locating and measuring the cured replica.
Start with your component
Discuss TESA dimensional replica materials
Feature drawing, internal/external geometry, extraction access, dimensional tolerance or surface parameter, quantity and evaluation method.
India availability, supplied accessories and lead time are confirmed with the quotation.
