Peel 3 Pro.CAD for reverse engineering
Peel 3 Pro.CAD combines Peel 3 scanning with Peel.CAD Pro software for scan-based sketching and CAD modelling. Evaluate it when your team wants to carry more reconstruction work within the supplied workflow rather than only preparing geometry for another CAD application.
What can Peel 3 Pro.CAD help you achieve?
Reconstruct design geometry
Use Peel.CAD Pro tools for scan-based sketching and CAD modelling.
Carry more work in one package
Combine capture and a broader reconstruction workflow in the selected software package.
Check the rebuilt shape
Compare reconstructed geometry with the scan before continuing the engineering process.
Application fit
When should you consider Peel 3 Pro.CAD?
- Teams doing regular reverse engineering
- Reconstruction of mechanical design geometry
- Users assessing a broader CAD software package
Application support from K K Geo System Pvt Ltd
Our team helps you select the scanner, Peel.CAD Pro package, required modelling workflow and workstation around your components and required output. Share your application so we can recommend a suitable configuration.
Peel 3 Pro.CAD — models and specifications
| Peel 3 hardware | Published specification |
|---|---|
| Recommended object size | 0.1–3.0 m |
| Accuracy | Up to 0.050 mm |
| Volumetric accuracy | 0.050 mm + 0.100 mm/m |
| Mesh resolution | 0.250 mm |
| Weight | 950 g |
| Connection | USB 3.0 |
These hardware specifications apply to the Peel 3 scanner. Package differences concern the software workflow. STL, OBJ and PLY are among the mesh outputs; STEP and IGES exports require the applicable CAD package. Performance depends on the specified measurement conditions.
Published specifications apply to the manufacturer’s configuration and test conditions.
How does Peel 3 Pro.CAD fit into your workflow?

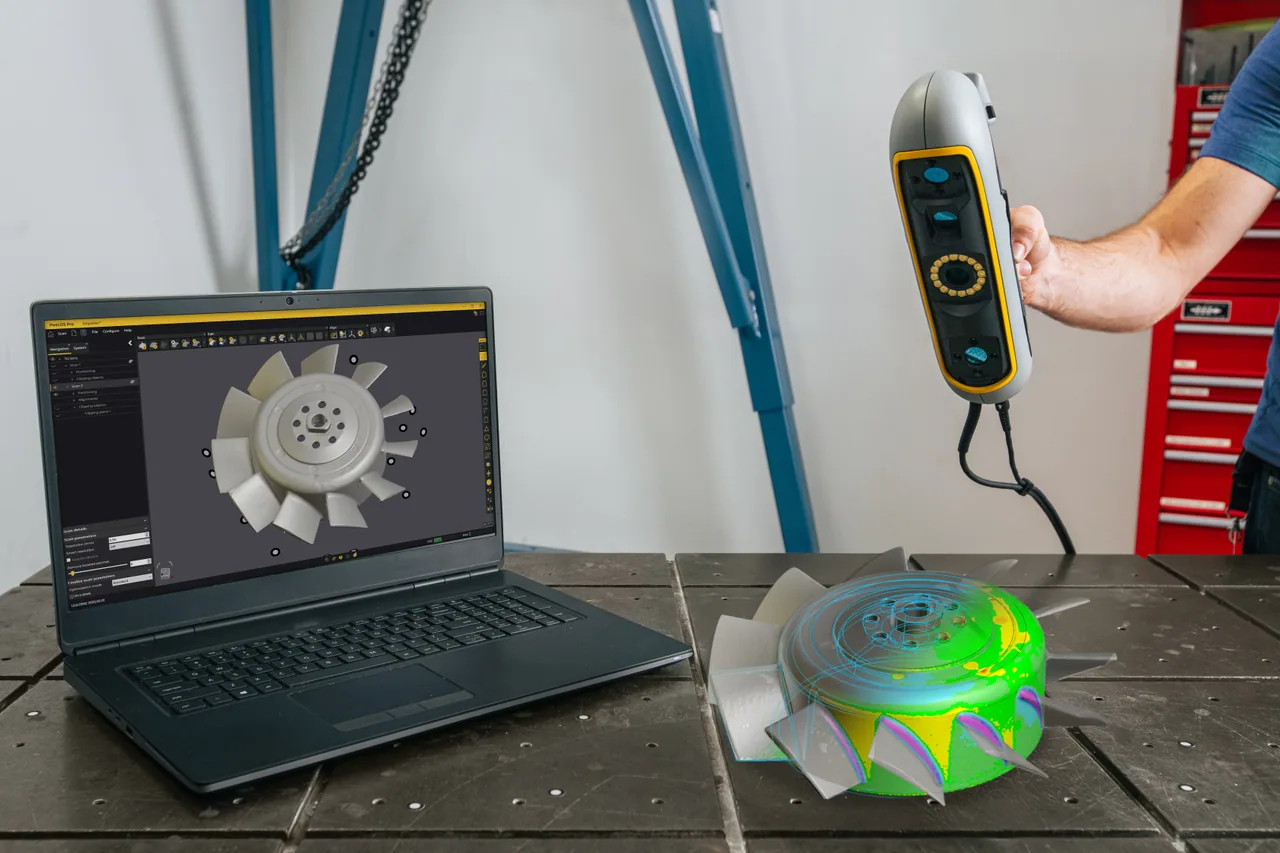

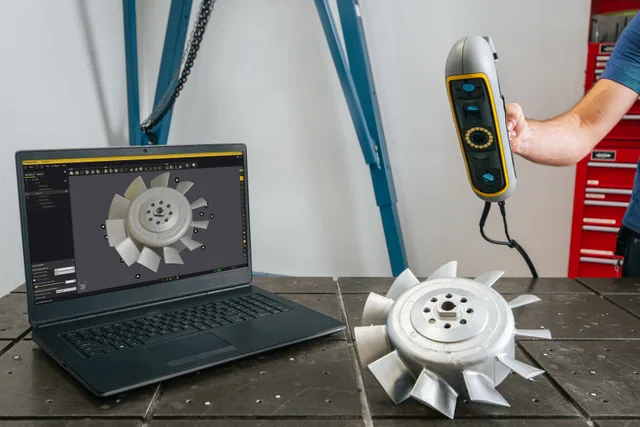

Peel 3 captures and processes the physical part. Peel.CAD Pro supports scan-based sketching and modelling, followed by comparison with the scan and export of the reconstructed geometry.
Request a Peel 3 Pro.CAD quotation
The quotation for Peel 3 Pro.CAD depends on the scanner, Peel.CAD Pro package, required modelling workflow and workstation. K K Geo System Pvt Ltd can recommend a configuration for your application and provide a proposal covering the agreed equipment, training and support.
Your Peel 3 Pro.CAD questions answered
What extra work can Pro.CAD handle?
Peel.CAD Pro adds scan-based sketching and modelling to the alignment and geometry-extraction workflow, supporting reconstruction of design geometry.
Can reconstructed geometry be checked against the scan?
Yes. Deviation analysis supports comparing the reconstruction with the captured geometry. Engineering decisions still distinguish intended design from wear or damage.
Does Pro.CAD improve scanner accuracy?
The package difference is in software capability, not a higher accuracy class for the Peel 3 hardware.
Which alternatives should you compare?
Compare CAD preparation · Compare another reverse-engineering route
Discuss your application
Discuss your Peel 3 Pro.CAD application
Share your component and measurement requirements so K K Geo System Pvt Ltd can recommend a suitable configuration and arrange a relevant demonstration.
