Peel 3 handheld 3D scanner
Peel 3 captures physical objects as digital mesh data for product development, digitisation and downstream design work. Start here when mesh capture is your immediate requirement, then compare Peel CAD packages if you also need tools to prepare or reconstruct design geometry.
What can Peel 3 help you achieve?
Capture physical objects
Turn accessible object surfaces into digital mesh data.
Prepare a usable mesh
Process captured data for downstream design and documentation.
Start a digitisation workflow
Introduce handheld scanning where the required output is a mesh or input to existing modelling software.
Application fit
When should you consider Peel 3?
- Object digitisation and product development
- Mesh capture for existing CAD workflows
- Teams introducing handheld scanning
Application support from K K Geo System Pvt Ltd
Our team helps you select the scanner, mesh-processing software, workstation and accessories around your components and required output. Share your application so we can recommend a suitable configuration.
Peel 3 — models and specifications
| Peel 3 hardware | Published specification |
|---|---|
| Recommended object size | 0.1–3.0 m |
| Accuracy | Up to 0.050 mm |
| Volumetric accuracy | 0.050 mm + 0.100 mm/m |
| Mesh resolution | 0.250 mm |
| Weight | 950 g |
| Connection | USB 3.0 |
These hardware specifications apply to the Peel 3 scanner. Package differences concern the software workflow. STL, OBJ and PLY are among the mesh outputs; STEP and IGES exports require the applicable CAD package. Performance depends on the specified measurement conditions.
Published specifications apply to the manufacturer’s configuration and test conditions.
How does Peel 3 fit into your workflow?

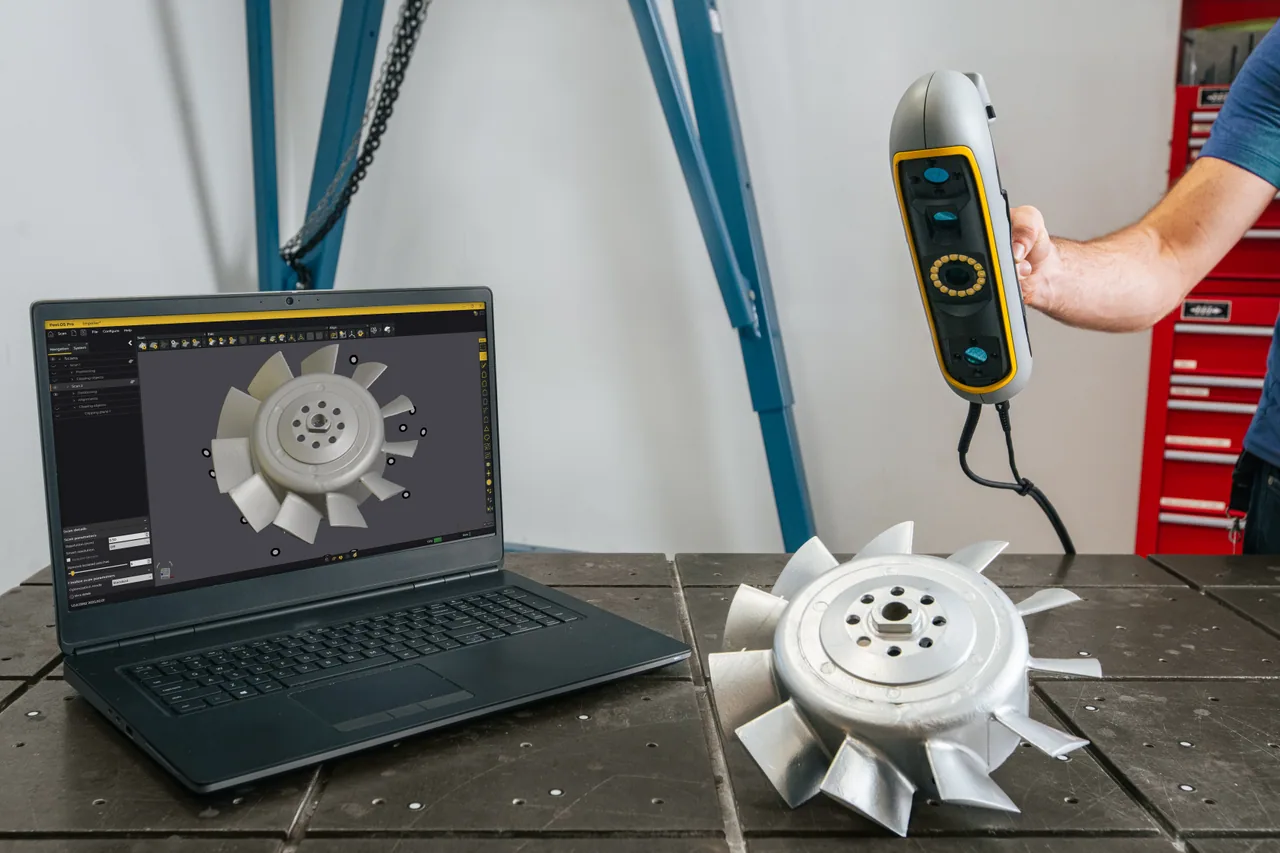

The object is prepared and scanned from overlapping viewpoints. Captured data is cleaned into a mesh for export to the downstream application; editable CAD requires a separate reconstruction workflow.
Watch Peel 3 in action
See the equipment in use
Watch this Peel 3 video, then discuss your application with our team.
Video opens on YouTube in a new tab.
What is included in a Peel 3 price enquiry for India?
The quotation for Peel 3 depends on the scanner, mesh-processing software, workstation and accessories. K K Geo System Pvt Ltd can recommend a configuration for your application and provide a proposal covering the agreed equipment, training and support.
Your Peel 3 questions answered
What does Peel 3 produce?
It captures physical objects as mesh data for digitisation and downstream design work. STL, OBJ and PLY are among the supported mesh output formats.
Do I need a CAD package if I already own CAD software?

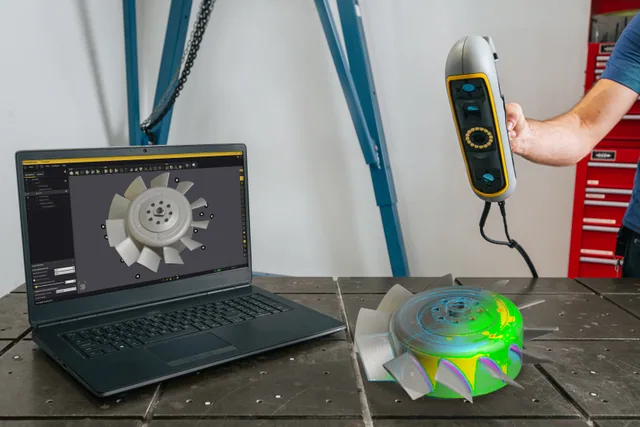

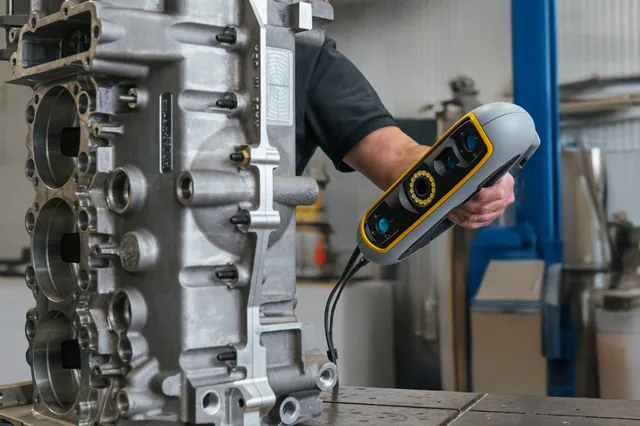

That depends on whether the existing software handles scan meshes and the required reconstruction tasks. Peel 3.CAD adds geometry preparation; Pro.CAD adds broader modelling tools.
What object sizes are recommended?
The manufacturer recommends objects from 0.1 to 3.0 m. Geometry, surface condition and the required level of detail also affect suitability.
Which alternatives should you compare?
Compare CAD preparation · Compare CAD reconstruction
Discuss your application
Discuss your Peel 3 application
Share your component and measurement requirements so K K Geo System Pvt Ltd can recommend a suitable configuration and arrange a relevant demonstration.
