METZER / METALLURGY
Controlled chamber heating for industrial laboratory processes, with temperature control options for the required cycle.
Enquire About This Range

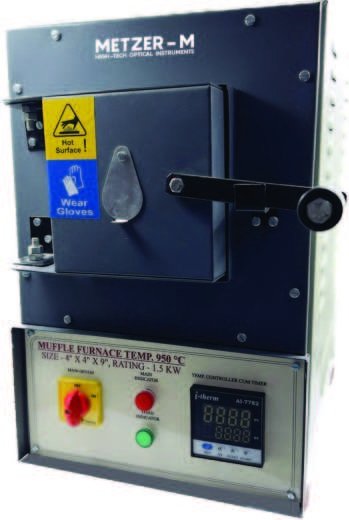

Metzer METZ 2006 muffle furnace
The Metzer METZ 2006 muffle furnace provides chamber heating for compatible industrial laboratory applications. Selection depends on the required temperature profile, sample load and operating cycle. Chamber dimensions and controller functions must suit the process as well as the space and utilities available in the laboratory.
Use this category to specify a laboratory chamber-heating requirement. The intended material, process and operating temperature determine whether a proposed furnace configuration is suitable.
THE METZER RANGE
Compare the specification highlights and choose a model to discuss with our team.
Compact chamber configuration.
Internal chamber
9 × 4 × 4 inches
Power rating
2 kW
Net weight
30 kg
Medium chamber configuration.
Internal chamber
10 × 5 × 5 inches
Power rating
2.5 kW
Net weight
40 kg
Larger chamber configuration.
Internal chamber
12 × 6 × 6 inches
Power rating
3.5 kW
Net weight
55 kg
Largest listed chamber configuration.
Internal chamber
18 × 9 × 9 inches
Power rating
6 kW
Net weight
80 kg
These are chamber-size configurations of the METZ 2006, not separate model numbers. Specify the operating temperature and cycle when selecting a furnace.
Answers to common questions about muffle furnaces.
Is peak temperature the same as continuous operating temperature?
No. A peak rating does not establish suitability for sustained operation at that temperature. Specify the complete heating cycle when selecting a furnace.
How should I choose chamber size?
Provide the dimensions and quantity of samples and containers, together with the loading arrangement. The usable chamber must suit the actual process load.
Are timer and PID control standard?
They are described as configuration options. The quotation should identify the controller and functions included with the selected furnace.
What information is needed for a furnace quotation?
Provide the intended process, temperature profile, dwell time, sample load, chamber requirement, electrical supply and any recording needs.
Share your heating process and operating cycle with K K Geo System to discuss a METZ 2006 configuration.
