HandySCAN EVO handheld 3D scanners
HandySCAN EVO is a handheld laser 3D scanner family for dimensional inspection and reverse engineering of mechanical components. Its integrated display brings scan feedback close to the component. Choose from EVO, EVO Plus, EVO Elite and EVO Elite Limited Edition with application guidance from K K Geo System Pvt Ltd.
What can HandySCAN EVO help you achieve?
Inspect manufactured parts
Capture surface geometry for comparison with reference CAD and dimensional inspection using the appropriate software.
Support reverse engineering
Create scan data from existing components to support CAD reconstruction, design modifications and tooling development.
Visualise results with Augmented Reality

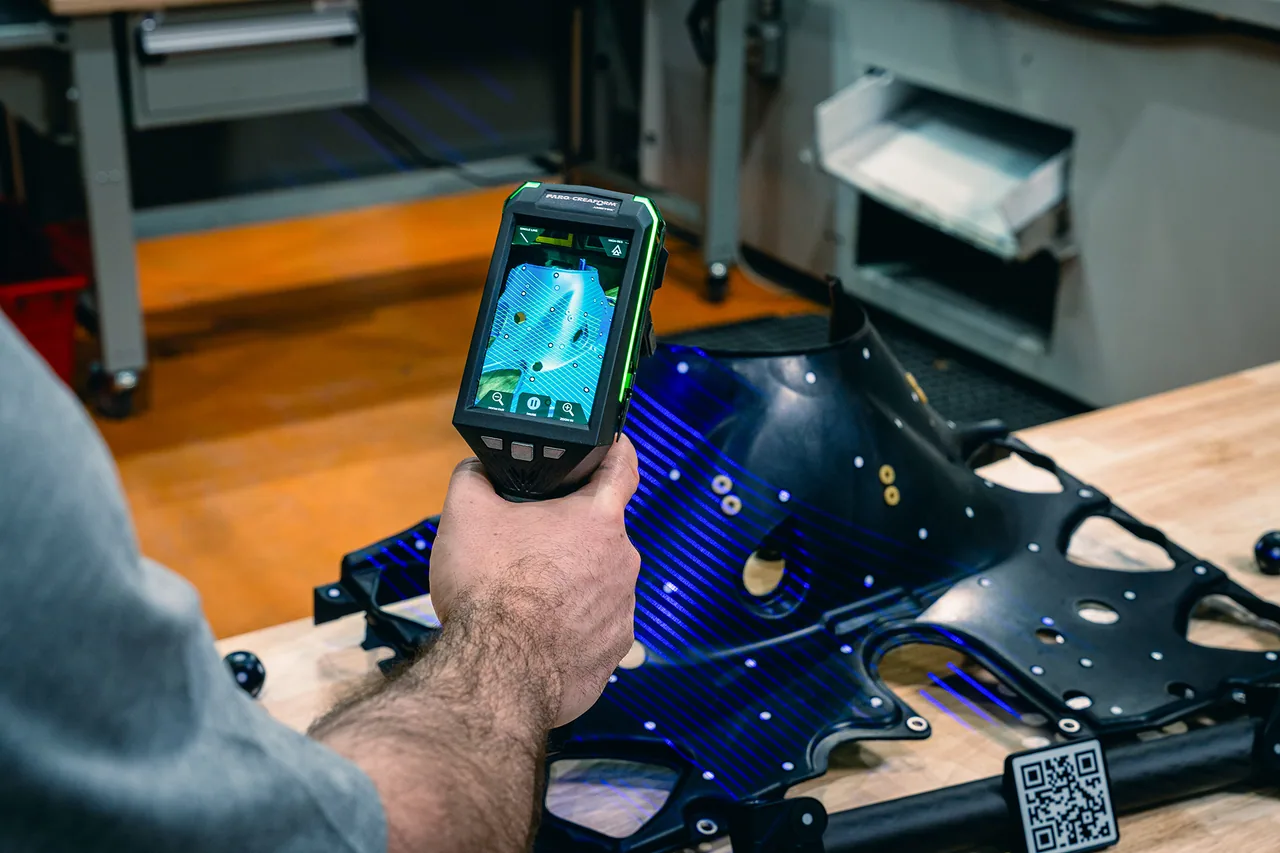

View scan mesh and deviation colour maps overlaid on the component image on the integrated display, helping operators identify areas that need closer inspection.
Application fit
When should you consider HandySCAN EVO Series?
- Automotive castings and machined components
- Tooling, moulds and sheet metal inspection
- Teams that want scan feedback close to the component
Application support from K K Geo System Pvt Ltd
Our team helps you select the EVO model, software and accessories suited to your components and required output. We can discuss surface preparation, access to features and the workstation configuration as part of your application review.
HandySCAN EVO Series — models and specifications
| Model | Accuracy | Volumetric accuracy (standard configuration) |
|---|---|---|
| EVO | 0.025 mm | 0.020 mm + 0.040 mm/m |
| EVO Plus | 0.025 mm | 0.020 mm + 0.040 mm/m |
| EVO Elite | 0.020 mm | 0.020 mm + 0.020 mm/m |
| EVO Elite Limited Edition | 0.015 mm | 0.015 mm + 0.015 mm/m with Accu+ Kit scale bars |
EVO Plus and EVO Elite can achieve 0.020 mm + 0.015 mm/m with the Accu+ Kit scale bars. Limited Edition performance requires its specified configuration. Accuracy and volumetric accuracy describe different performance measures.
Published specifications apply to the manufacturer’s configuration and test conditions.
How does HandySCAN EVO fit into your workflow?
Prepare the component and measurement reference, then capture accessible surfaces with feedback on the integrated display. Review coverage, align the scan data and prepare the mesh in the scanning software. Continue to CAD comparison and inspection reporting, or use the scan for CAD reconstruction with the appropriate software.
Watch HandySCAN EVO in action
See the equipment in use
See HandySCAN EVO in action in the manufacturer video, including the scanner interface and component-scanning workflow.
Manufacturer overview · 1:43 · Plays on this page
What affects the HandySCAN EVO price in India?
HandySCAN EVO pricing depends on the selected model, software, workstation and accessories. K K Geo System Pvt Ltd can recommend a configuration for your application and provide a quotation covering the agreed equipment, training and support.
Your HandySCAN EVO Series questions answered
What does Augmented Reality show on HandySCAN EVO?
The integrated display can overlay scan mesh and deviation colour maps on the component image, helping the operator see coverage and areas requiring attention. Inspection software remains part of the measurement and reporting workflow.
How does EVO Elite Limited Edition differ?
Its published accuracy is 0.015 mm, compared with 0.020 mm for standard EVO Elite. The enhanced volumetric figure of 0.015 mm + 0.015 mm/m requires the Accu+ Kit scale bars.
Can EVO support both inspection and reverse engineering?
Yes. Captured surfaces can support CAD comparison and inspection reporting, or provide a reference for CAD reconstruction. These outputs use the appropriate software modules; scanning alone does not create an editable CAD model.
Which alternatives should you compare?
Compare BLACK Elite · Explore large-part scanning
Discuss your application
Discuss your HandySCAN EVO application
Share your component and measurement requirements so K K Geo System Pvt Ltd can recommend a suitable configuration and arrange a relevant demonstration.
