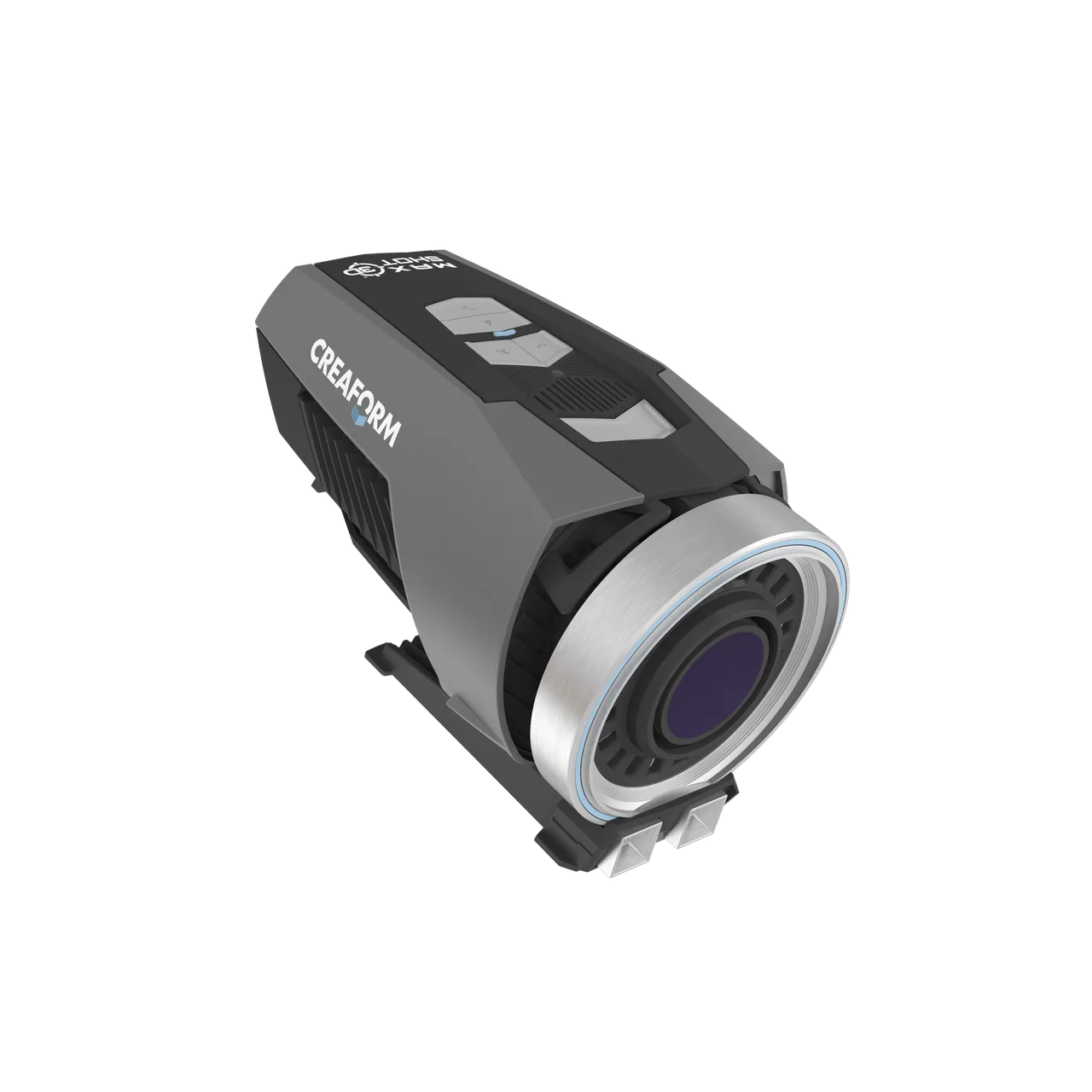

MaxSHOT 3D photogrammetry measurement system
MaxSHOT 3D establishes reference coordinates through photogrammetry for compatible measurement workflows. Evaluate it for large assemblies where a reference network supports scanning or probing; it does not produce a dense surface mesh on its own.
What can MaxSHOT 3D help you achieve?
Establish reference coordinates
Create a photogrammetry reference network for larger components and assemblies.
Support large-part measurement
Supply reference information to compatible scanning or probing systems.
Connect multiple viewpoints
Use photographs taken around the object to establish the measurement reference.
When should you consider MaxSHOT 3D?
- Reference networks on large assemblies
- Large-part scanning support
- Measurement workflows spanning several viewpoints
Application support from K K Geo System Pvt Ltd
Our team helps you select the photogrammetry model, reference accessories, software and system compatibility around your components and required output. Share your application so we can recommend a suitable configuration.
MaxSHOT 3D — models and specifications
| Current model | Volumetric accuracy | Measurement role |
|---|---|---|
| MaxSHOT NEXT | 0.025 mm/m | Photogrammetry reference coordinates |
| MaxSHOT NEXT ELITE | 0.015 mm/m | Photogrammetry reference coordinates |
Manufacturer performance is assessed using traceable artefacts under VDI/VDE 2634 part 1. Combined scanner-system performance depends on the paired model and cannot exceed that model’s default accuracy. The reference network does not replace surface scanning.
Published specifications apply to the manufacturer’s configuration and test conditions.
How does MaxSHOT 3D fit into your workflow?
Photographs capture targets and scale references around the object. The photogrammetry workflow calculates reference coordinates, which are then used with compatible scanning or probing equipment.
Watch MaxSHOT 3D in action
See the equipment in use
Explore the equipment and its application in this manufacturer overview.
Manufacturer overview · 1:59 · Plays on this page
What should a MaxSHOT system proposal include?
The quotation for MaxSHOT 3D depends on the photogrammetry model, reference accessories, software and system compatibility. K K Geo System Pvt Ltd can recommend a configuration for your application and provide a proposal covering the agreed equipment, training and support.
Your MaxSHOT 3D questions answered
Does MaxSHOT create a surface mesh?
No. It establishes photogrammetry reference coordinates. A compatible surface scanner is needed when the deliverable includes a mesh.
How do NEXT and NEXT ELITE differ?
NEXT publishes 0.025 mm/m volumetric accuracy and NEXT ELITE 0.015 mm/m. The performance of a combined scanning setup also depends on the paired scanner.
Why use a reference network on a large component?
A network connects reference coordinates from multiple viewpoints around the object and supports the compatible measurement workflow across its size.
Which alternatives should you compare?
Explore large-component capture · Review optical measurement
Discuss your MaxSHOT 3D application
Share your component and measurement requirements so K K Geo System Pvt Ltd can recommend a suitable configuration and arrange a relevant demonstration.
