CUBE-R automated 3D inspection cells
CUBE-R M Series provides automated 3D inspection cells for repeatable component measurement. Compare the M2, M3 and M4 families using the loaded part envelope, robot access and inspection process, then validate the full cycle for your production requirement.
What can CUBE-R M Series help you achieve?
Bring inspection into a cell
Combine automated scanning and part presentation in a defined inspection-cell arrangement.
Inspect recurring parts
Support repeated measurement of components such as sheet metal parts and castings.
Match the cell to the component
Select the cell configuration around the loaded part envelope and inspection requirements.
Application fit
When should you consider CUBE-R M Series?
- Manufacturers seeking a defined inspection cell
- Repeated inspection of sheet metal and castings
- Projects requiring part loading and inspection planning together
Application support from K K Geo System Pvt Ltd
Our team helps you select the cell configuration, part loading, fixtures, software and installation scope around your components and required output. Share your application so we can recommend a suitable configuration.
CUBE-R M Series — models and specifications
| Configuration | Nominal part size | System scope |
|---|---|---|
| CUBE-R M2 | Up to 2 m | Automated inspection cell |
| CUBE-R M3 | Up to 3 m | Automated inspection cell |
| CUBE-R M4 | Up to 4 m | Automated inspection cell |

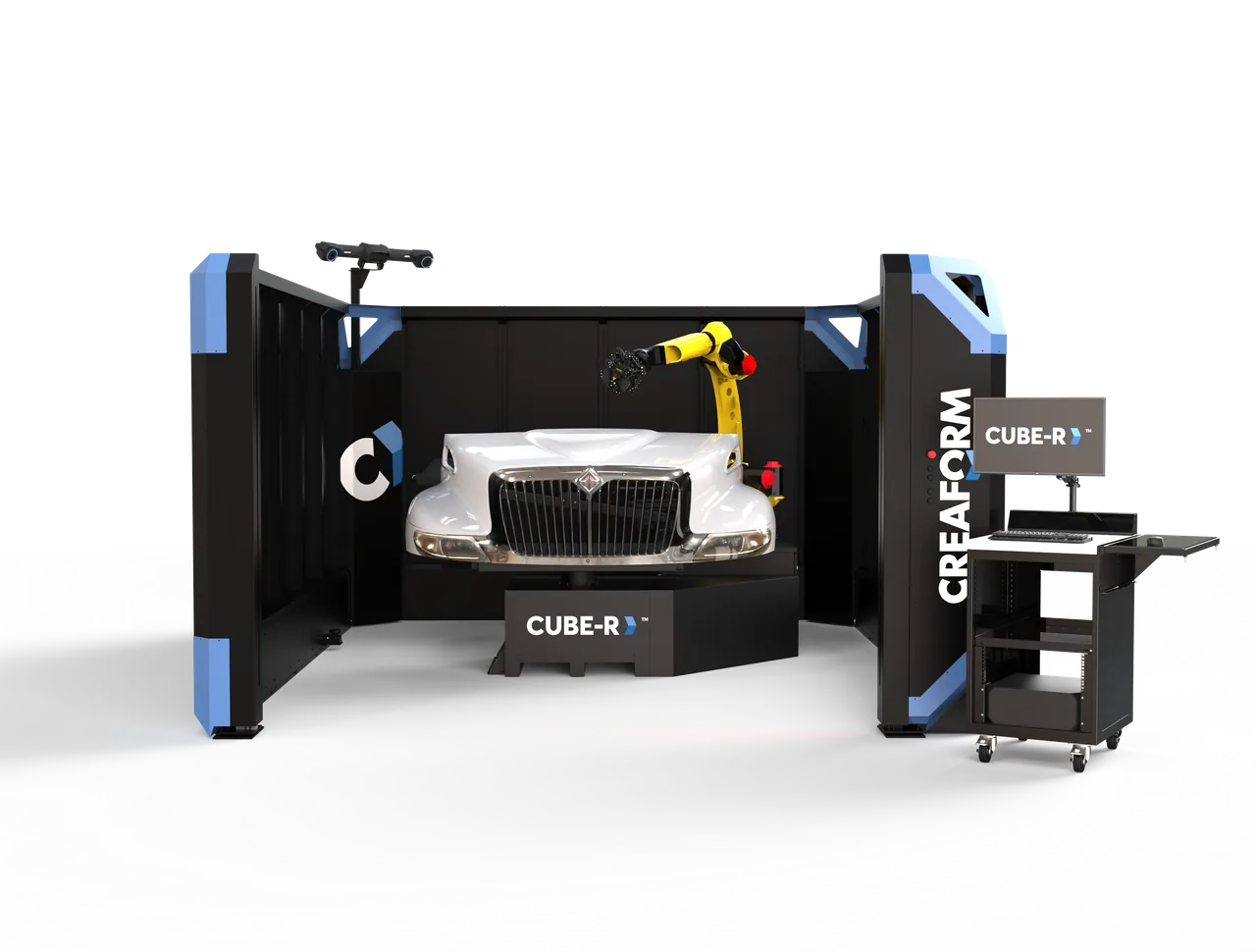

The modular CUBE-R platform also supports custom layouts. Cell selection accounts for the loaded component and fixture, robot access and required inspection coverage. Image shows an illustrative CUBE-R configuration.
Published specifications apply to the manufacturer’s configuration and test conditions.
How does CUBE-R M Series fit into your workflow?
Parts are presented in the selected cell using suitable fixtures and loading arrangements. Programmed scanning captures the required surfaces, and inspection software processes the data into the agreed dimensional results.
See the automated inspection workflow
See the equipment in use
This manufacturer overview introduces the R-Series automation approach. It is shared across the automation range and is not a demonstration of one specific cell configuration.
Manufacturer overview · 2:19 · Plays on this page
What affects the CUBE-R cell price in India?
The quotation for CUBE-R M Series depends on the cell configuration, part loading, fixtures, software and installation scope. K K Geo System Pvt Ltd can recommend a configuration for your application and provide a proposal covering the agreed equipment, training and support.
Your CUBE-R M Series questions answered
How do M2, M3 and M4 differ?
The standard cell families support nominal part sizes up to 2 m, 3 m and 4 m respectively. Loaded fixtures and robot access also influence the selected arrangement.
Can CUBE-R be configured for a different layout?
The modular platform supports custom layouts as well as the standard M-series cells. The final configuration is defined around the application and installation.
Which parts suit a CUBE-R cell?
Repeated inspection of sheet metal components, castings and other manufactured parts is a typical use. The cell is planned around the required part mix and measurement process.
Which alternatives should you compare?
Compare an integration route · Return to automation selection
Discuss your application
Discuss your CUBE-R M Series application
Share your component and measurement requirements so K K Geo System Pvt Ltd can recommend a suitable configuration and arrange a relevant demonstration.
